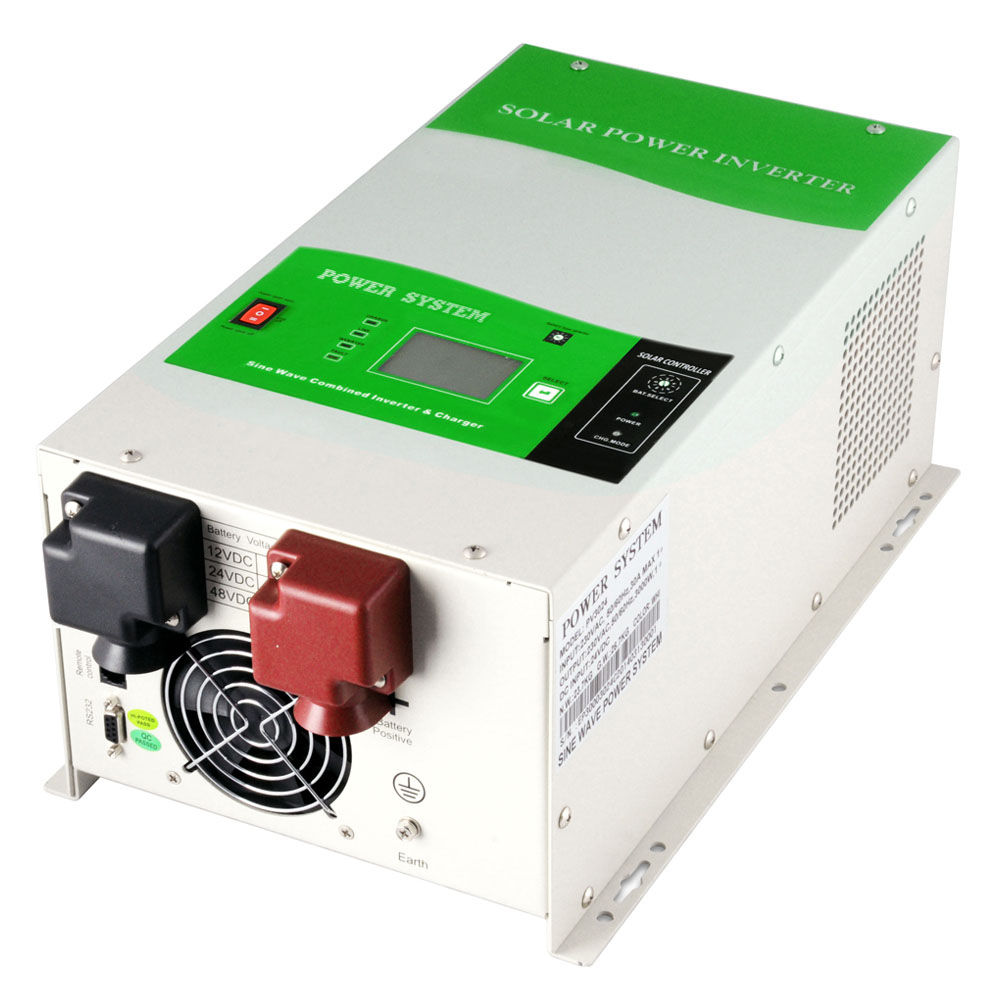

- Rated Power: 1-6KW
- Battery Voltage: 12/24/48VDC
- PV Charge Current: 30/60A
| MODEL | OSB30-1KW | OSB30-1.5KW | OSB30-2KW | OSB30-3KW | OSB30-4KW | OSB30-5KW | OSB30-6KW | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Default Battery System Voltage (DC) | 12V | 24V | 12V | 24V | 12V | 24V | 12V | 24V | 24/48V | 24/48V | 24/48V | |||||
| INVERTER OUTPUT | ||||||||||||||||
| Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||||
| Surge Rating (20ms) | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | |||||||||
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 2HP | 3HP | 3HP | |||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | Pure sine wave/ same as input (bypass mode) | ||||||||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | 100V/110V/120VAC 220V/230V/240VAC | 220V/230V/240VAC | |||||||||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | 50Hz/60Hz +/-0.3 Hz | ||||||||||||||
| Inverter Efficiency(Peak) | >88% | >88% | ||||||||||||||
| Line Mode Efficiency | >95% | >95% | ||||||||||||||
| Power Factor | 0.8 | 1.0 | ||||||||||||||
| Typical Transfer Time | 10ms(max) | 10ms(max) | ||||||||||||||
| AC INPUT | ||||||||||||||||
| Voltage | 100V/110V/120V 220V/230V/240V | 220V/230V/240V | ||||||||||||||
| Selectable Voltage Range | 96~132VAC 155~280VAC (For Personal Computers) | 96~132VAC/155~280VAC (For Personal Computers) | ||||||||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | 50HZ/60HZ (Auto sensing) 40-80Hz | ||||||||||||||
| BATTERY | ||||||||||||||||
| Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) | 20.0VDC~21.0VDC /40.0VDC~42.0VDC | ||||||||||||||
| Low Battery Alarm | 10.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 21.0VDC+/-0.6V /42.0VDC+/-1.2V | ||||||||||||||
| Low Battery Cutoff | 10.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 20.0VDC+/-0.6V /40.0VDC+/-1.2V | ||||||||||||||
| High Voltage Alarm | 16.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 32.0VDC+/-0.6V /64.0VDC+/-1.2V | ||||||||||||||
| High Battery Voltage Recover | 15.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 31.0VDC+/-0.6V / 62.0VDC+/-1.2V | ||||||||||||||
| Idle Consumption-Search Mode | <25W when power saver on | <50W when power saver on | ||||||||||||||
| AC CHARGER | ||||||||||||||||
| Output Voltage | Depends on battery type | Depends on battery type | ||||||||||||||
| Charger AC Input Breaker Rating | 10A | 30A | 30A | 30A | 40A | |||||||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, ) | 31.4VDC/62.8VDC | ||||||||||||||
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 65A | 35A | 70A | 40A | 75A | 50A | ||
| BYPASS & PROTECTION | ||||||||||||||||
| Input Voltage Waveform | Sine wave (grid or generator) | Sine wave (grid or generator) | ||||||||||||||
| Nominal Input Frequency | 50Hz or 60Hz | 50Hz or 60Hz | ||||||||||||||
| Overload Protection (SMPS Load) | Circuit breaker | Circuit breaker | ||||||||||||||
| Output Short Circuit Protection | Circuit breaker | Circuit breaker | ||||||||||||||
| Bypass Breaker Rating | 10A | 15A | 30A | 30A | 40A | |||||||||||
| Max Bypass Current | 30Amp | 40Amp | ||||||||||||||
| SOLAR CHARGER | ||||||||||||||||
| Maximum PV Array Power | 600W | 1200W | 600W | 1200W | 600W | 1200W | 600W | 1200W | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | ||
| Maximum PV Charge Current | 40A | 60A | ||||||||||||||
| DC Voltage | 12V/24V atuo work | 24V/48V atuo work | ||||||||||||||
| MPPT Range @ Operating Voltage | 16~100VDC | 32~145VDC @ 24V / 64~145VDC @ 48V | ||||||||||||||
| Maximum PV Array Open Circuit Voltage | 100VDC | 145VDC | ||||||||||||||
| Maximum Efficiency | >90% | >98% | ||||||||||||||
| Standby Power Consumption | <2W | <2W | ||||||||||||||
| MECHANICAL SPECIFICATIONS | ||||||||||||||||
| Mounting | Wall mount | Wall mount | ||||||||||||||
| Dimensions (W*H*D) | 460*277*192mm | 597x277x198mm | ||||||||||||||
| Net Weight (Solar CHG) kg | 18.3 | 22 | 23.5 | 23 | 28 | 27 | 39.6 | 48.6 | 48.6 | |||||||
| Shipping Dimensions(W*H*D) | 554*360*300mm | 743*372*312mm | ||||||||||||||
| Shipping Weight (Solar CHG) kg | 21.9 | 24.8 | 26.5 | 25.6 | 31 | 30 | 43.3 | 53 | 53 | |||||||
| OTHER | ||||||||||||||||
| Operation Temperature Range | 0°C to 40°C | |||||||||||||||
| Storage Temperature | -15°C to 60°C | |||||||||||||||
| Audible Noise | 60dB MAX | |||||||||||||||
| Display | LED+LCD | |||||||||||||||
| Loading(20GP/40GP/40HQ) | 460pcs / 920pcs / 1060pcs | 320pcs / 640pcs / 750pcs | ||||||||||||||
Approximate Back-up Time Table
| Power Rate(w) | backup time(H) @1*100Ah | backup time(H) @2*100Ah | backup time(H) @4*100Ah | backup time(H) @4*200Ah | backup time(H) @8*200Ah | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000 | 0.4806 | 1.602 | 3.50304 | 7.6896 | |||||||||||||||
| 2000 | 0.2136 | 0.4806 | 1.602 | 3.50304 | 7.6896 | ||||||||||||||
| 3000 | 0.1068 | 0.2848 | 0.8544 | 2.136 | 4.8416 | ||||||||||||||
| 4000 | 0.2136 | 0.4806 | 1.602 | 3.50304 | |||||||||||||||
| 5000 | 0.12816 | 0.34176 | 1.19616 | 2.73408 | |||||||||||||||
| 6000 | 0.1068 | 0.2848 | 0.8544 | 2.136 | |||||||||||||||
